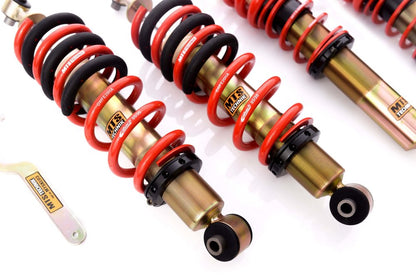

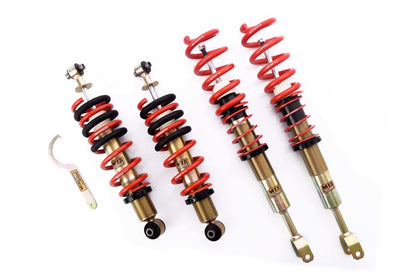

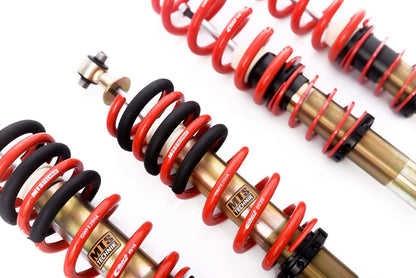

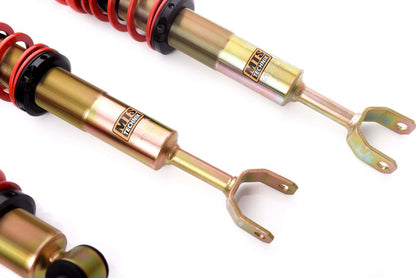

MTS Technik coilover Audi A4/S4/RS4 B5 (8D) - Street

Coilover Kit MTS Technik for Audi A4 B5 Avant (8D), senker foran mellom 40 - 100 mm, og bak mellom 20 - 80 mm. For årsmodell mellom: 11/94 - 09/01, for motor: 1.8 T quattro / 1.8 quattro / 1.9 TDI quattro / 2.4 quattro / 2.5 TDI quattro / 2.6 quattro / 2.8 quattro / RS4 quattro / S4 quattro.

Street-seriens fjæring er standardkonfigurasjonen foreslått av MTS Technik-ingeniører, og garanterer et bredt spekter av senking og en balanse mellom komfort og stivhet.

Bil:

Make	Audi
Model	A4 B5 Avant (8D)
Type	8D5
Engine	1.8 T quattro / 1.8 quattro / 1.9 TDI quattro / 2.4 quattro / 2.5 TDI quattro / 2.6 quattro / 2.8 quattro / RS4 quattro / S4 quattro
Year	11/94 - 09/01

TECH SPECS:

Series:	street
Housing:	gold
Max. Axle Load FA:	1081 - 1150 kg
Max. Axle Load RA:	-1140 kg
Lowering FA:	40 - 100 mm
Lowering RA:	20 - 80 mm
Camber / top mount FA:	no
Camber / top mount RA:	no
Coilover Main Spring (Front):	Spring rate (150 N/mm)
Coilover Helper Spring (Front):	Spring rate (20 N/mm)
Coilover Main Spring (Rear):	Spring rate (40 - 80 N/mm)
TUV Certificate:	yes
Download information brochure:	Download information brochure
Download installation manual:	Download installation manual
Download TUV Certificate:	Download TUV Certificate

PRODUCT NOTES

2 - Front and rear axle height adjustable (threaded shock absorber housing).

21 - If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.

24 - During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
